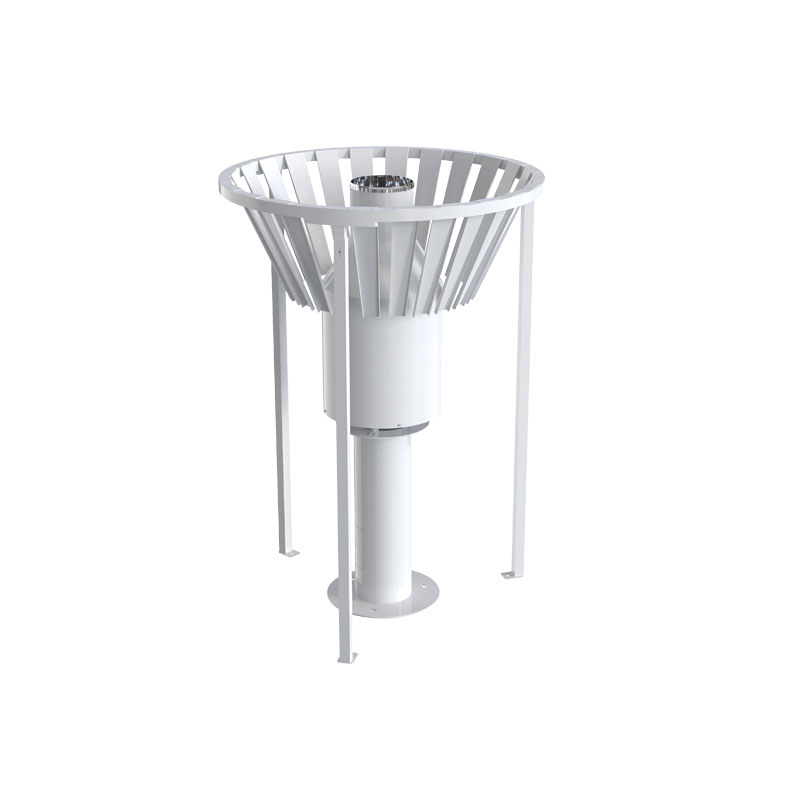

Weighing Principle Precipitation Gauge

Model：FT-YX1

Brand：fengtu

Weighing Principle Precipitation Gauge is designed based on the principle of load measurement technology to measure precipitation through rapid response to mass changes....

Get a Free Quote

1.Weighing Principle Precipitation Gauge Product Overview

Weighing Principle Precipitation Gauge is designed based on the principle of load measurement technology to measure precipitation through rapid response to mass changes.The Weighing Principle Precipitation Gauge uses high-precision pressure sensing elements, which can automatically measure the solid, liquid and solid-liquid mixed precipitation and snow in a long-term, stable and high-precision manner and store relevant measurement data. The standard design, modular components and castings ensure the high reliability and low maintenance of the precipitation and snow gauge, making it suitable for all-weather rainfall and snowfall observation in areas with harsh environments. Because it adopts the weighing principle and open sampling barrel design, it can accurately measure both small and large rainfall intensities, covering a rainfall intensity range of 6~1800mm/h, which makes up for the narrow rainfall intensity range of traditional tipping bucket or digital rain gauges.

2.Weighing Principle Precipitation Gauge Technical Parameters

Rain-bearing diameter: φ200±0.06mm; sharp angle of cutting edge: 40°～45°;

Measuring range: 0~1000mm;

Resolution: 0.1mm;

Maximum measurement error (intensity ≥ 0.5mm/h): ±0.2mm, ≤10mm; ±2%, >10mm;

Maximum load: 50KG;

Power supply range: 9~16V (heating unit requires 12V);

Working temperature range: -40℃~60℃;

Temperature detection accuracy: ±0.5℃;

Clock accuracy: 2 minutes/year;

Storage capacity: more than 10 years;

Output mode: RS485 (protocol see appendix) or switch value;
