Customization Solutions for 6 - Element Portable Weather Station

Configuration of Basic Monitoring Elements

The standard six elements of the Portable Weather Station are temperature, humidity, air pressure, wind speed, wind direction, and precipitation. These elements can provide you with comprehensive meteorological information. Additionally, we can expand more monitoring parameters according to your specific needs. For example, in the environmental protection field, we can add monitoring items such as light intensity, ultraviolet index, and PM2.5/PM10 particulate matter concentration to better meet your professional requirements.

Customization of Power Supply System

In terms of the power supply system, we offer you a conventional solution: a 12000mAh lithium - ion battery paired with a solar panel. The lithium - ion battery can ensure that the weather station can work continuously for less than 50 hours in areas without power supply, while the solar panel can provide renewable energy replenishment for the weather station, ensuring its stable operation in power - free environments such as the wild.

Data Transmission and Storage

For data transmission methods, we provide a variety of options. In remote areas, GPRS/4G technology can ensure stable data transmission; for short - distance debugging, the Bluetooth function is convenient and fast; within a local area network, Wi - Fi connection can achieve efficient data transmission; and LoRa (Low - Power Wide - Area Network) is suitable for a wider range of application scenarios. In terms of data storage, the weather station has a local storage capacity of ≥500,000 records and supports unlimited expansion in the cloud, ensuring the security and easy management of your data. We also support data encryption functions to protect the security of your data.

Optimization Scheme for Hardware Structure

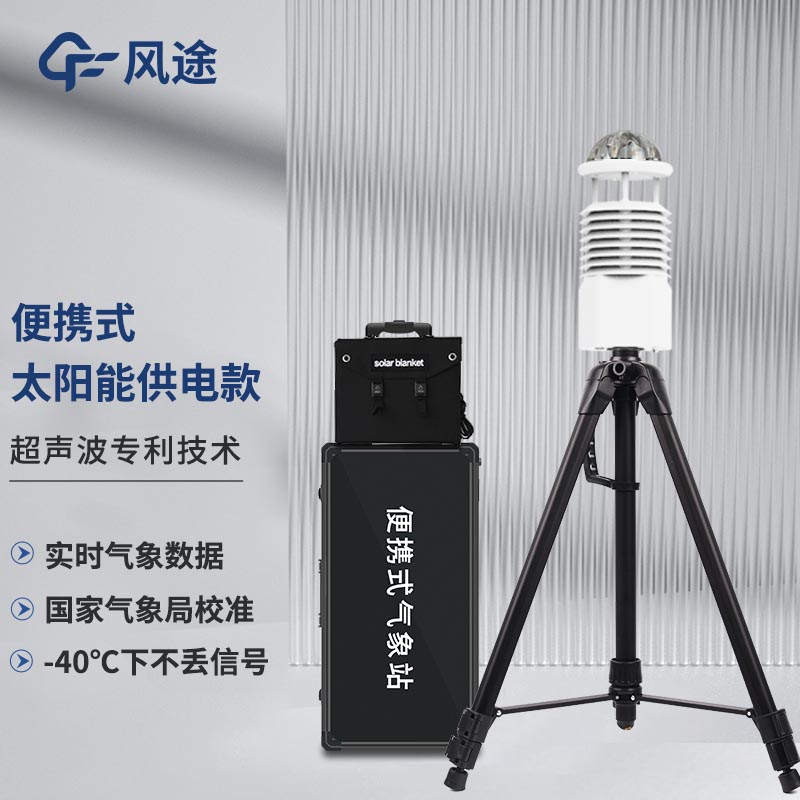

Portability Design

We deeply understand the importance of portability for field operations. Therefore, we have strictly controlled the weight of the weather station, making its overall weight ≤5kg (including the tripod), which is convenient for you to carry. At the same time, we have designed a quick - deployment function, allowing you to complete the deployment of the weather station within 2 minutes. The height of the telescopic bracket can be freely adjusted between 1.2 - 3 meters to meet different monitoring needs. Moreover, the weather station has an IP waterproof and dustproof rating, enabling it to work normally in harsh environments.

Reserved Expansion Interfaces

To meet your possible future expansion needs, we have reserved a wealth of expansion interfaces. This includes RS485/Type - C interfaces, which are convenient for you to connect external sensors; and an SD card slot for data backup storage, ensuring the security and reliability of your data.
