Stainless Steel Tipping Bucket Rain Gauge

Model：YL1

Brand：fengtu

Stainless Steel Tipping Bucket Rain Gauge is used to measure natural rainfall and can be used for long-term collection of rainfall data from national hydrological and meteorological stations....

Get a Free Quote

1. Technical indicators of Stainless Steel Tipping Bucket Rain Gauge

Stainless Steel Tipping Bucket Rain Gauge is used to measure natural rainfall and can be used for long-term collection of rainfall data from national hydrological and meteorological stations.

1. Power supply: DC12V

2. Power consumption: 0.02W

3. Working environment: 0~50℃

4. Communication interface: RS485

5. Working current: 2mA DC12V

6. Minimum data interval: 0.5S

2. Stainless Steel Tipping Bucket Rain Gauge parameters

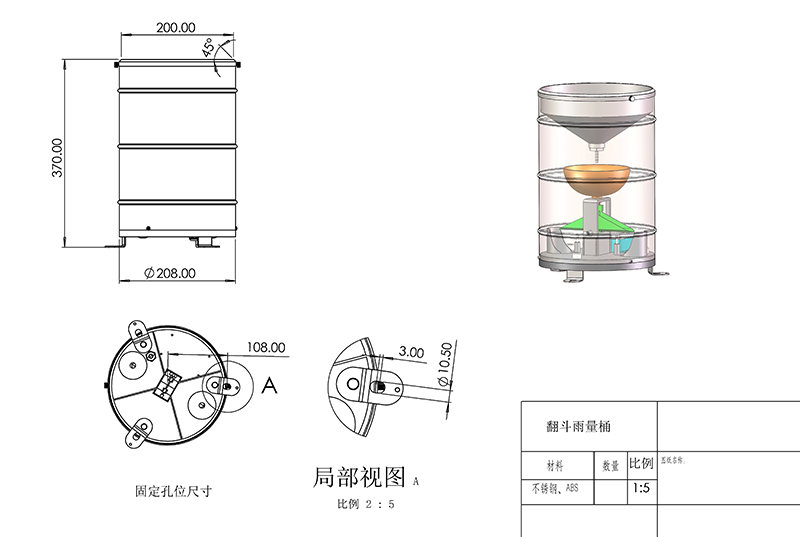

Rain gauge barrel diameter	Φ200mm
working temperature	0～50℃
Working humidity	<95%(no condensation)
error	≤±2%
resolution	0.2mm
Rain intensity range	0mm～4mm/min, the maximum rain intensity allowed is 8mm/min
Heavy rain intensity range	0～10mm/min, the maximum rain intensity allowed is 15mm/min
Output mode	Modbus485
