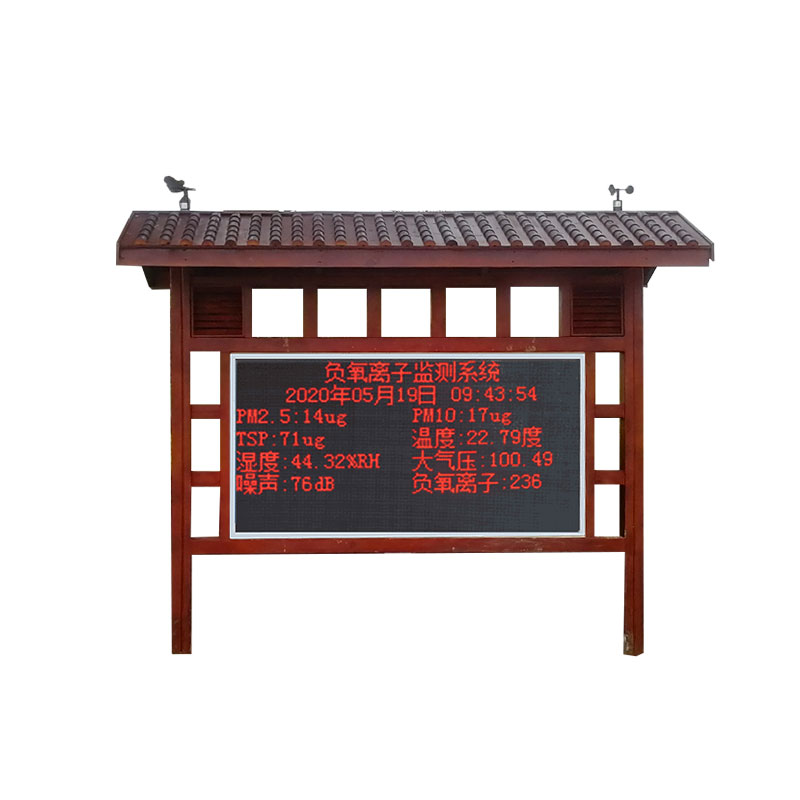

scenic weather station Provides Precise Data for Scenic Area Air Quality Assessment

scenic weather station is capable of real-time monitoring of multiple parameters, including negative oxygen ions, PM2.5, PM10, temperature, humidity, atmospheric pressure, oxygen levels, noise, wind speed, and wind direction. The system consists of an atmospheric monitoring unit, a data transmission module, and a backend management platform; it can operate autonomously 24 hours a day without supervision and is widely applied in fields such as forestry, scenic areas, parks, environmental protection, meteorology, and agriculture.

scenic weather station is a stationary environmental monitoring device specifically designed for the real-time monitoring of negative oxygen ion concentrations and various meteorological elements in the air. The system can simultaneously monitor multiple indicators—including negative oxygen ions, PM2.5, PM10, temperature, humidity, atmospheric pressure, oxygen levels, noise, wind speed, and wind direction—making it suitable for diverse sectors such as forestry, scenic areas, parks, environmental protection, meteorology, and agriculture.

scenic weather station comprises an atmospheric monitoring unit, a meteorological environment monitoring system, a data display and analysis system, an early warning and control system, a wireless transmission system, a backend data processing system, and an information monitoring and management platform. After being processed by a central processing unit, all sensor data is transmitted—via either wireless or wired connections—to the monitoring platform, allowing for both real-time viewing and data storage. The system features a modular structural design, enabling the independent replacement of individual sensors; it comes standard with a professional mounting bracket, allowing the device to be installed on walls or columns, thereby facilitating convenient operation and maintenance in the long term.

In terms of technical specifications, negative oxygen ion monitoring utilizes a cylindrical electrode aspiration principle, offering a measurement range of 0 to 100,000 ions/cm³ with an accuracy of ±10%. Wind speed and direction are measured using ultrasonic technology, covering a wind speed range of 0 to 60 m/s with a wind direction resolution of 1°. PM2.5 and PM10 levels are measured using the laser scattering principle, with a measurement range of 0 to 1,000 μg/m³. The temperature measurement range spans -40°C to 60°C, humidity ranges from 0% to 100% RH, and atmospheric pressure ranges from 300 to 1,100 hPa. Data transmission is supported via multiple methods—including 4G, GPRS, and fiber optics—while power can be supplied through either 220V mains electricity or solar energy. With an ingress protection rating exceeding IP65, the device is capable of operating effectively in environmental conditions ranging from -40°C to 60°C.

The scenic weather station system boasts a wide range of application scenarios, primarily focusing on the centralized monitoring and management of ambient air quality within areas such as ecological parks, wetland parks, waterfall parks, forest parks, nature reserves, and tourist attractions. In a practical application, after negative oxygen ion monitoring stations were deployed at the Limutai Scenic Area in Jizhou District, Tianjin, monitoring data revealed that the negative oxygen ion concentration within the area reached as high as 2,137 ions per cubic centimeter—far exceeding the "fresh air" standard defined by the World Health Organization. This achievement successfully earned the site the title of Tianjin's sole "Natural Oxygen Bar of China." Similarly, the installation of two negative oxygen ion monitoring stations within the Shizhushan Scenic Area in Fuqing enabled diversified monitoring of negative oxygen ions alongside the real-time capture of live video footage, thereby helping the scenic area to continuously enhance its reputation as a premier destination for "health and wellness tourism."

The scenic weather station system operates continuously 24 hours a day and supports unattended operation; data can be displayed locally via an LED screen or accessed remotely through a cloud platform or official WeChat account. The system features a comprehensive suite of functions—including data storage, historical data retrieval, trend analysis, and threshold-based alerting—providing essential data support for air quality assessments, "Natural Oxygen Bar" certification processes, and scientific decision-making regarding the development of eco-friendly health and wellness tourism.
