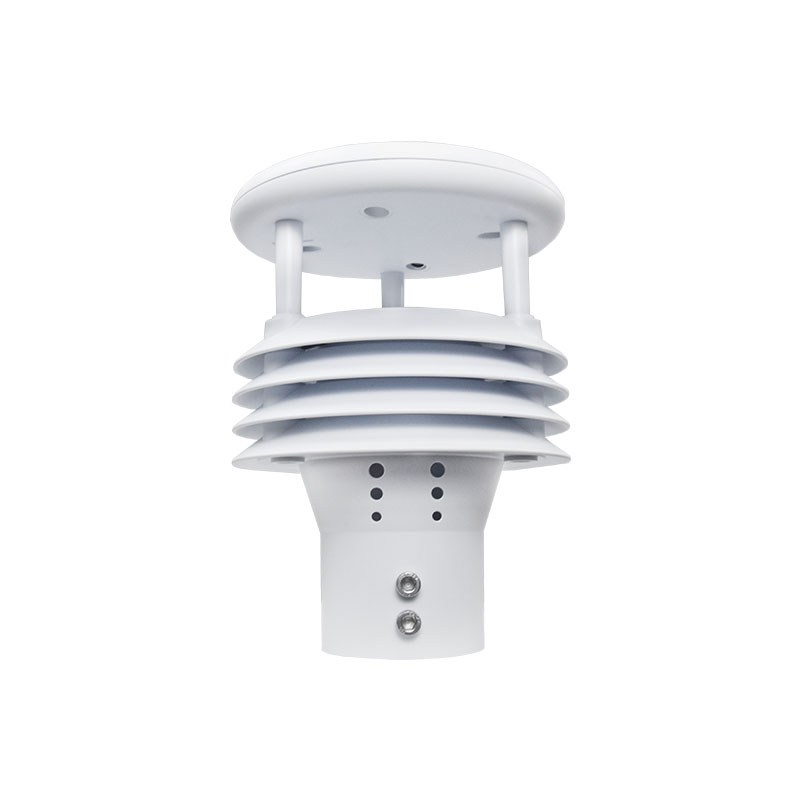

Explosion Proof Sensor Designed for Flammable and Explosive Environments, Integrating Five Monitoring Functions

Explosion Proof Sensor integrates five monitoring functions—wind speed, wind direction, temperature, humidity, and atmospheric pressure—into a single, compact structure. It is specifically designed for use in flammable and explosive environments, such as those found in the petroleum, chemical, and mining industries. Utilizing ultrasonic principles and intrinsically safe explosion-proof technology, this device enables precise measurements without requiring a minimum startup wind speed. Furthermore, it transmits data in real-time via interfaces such as RS485, thereby ensuring the safety and stability of meteorological monitoring within hazardous zones.

Through its integrated structural design, Explosion Proof Sensor consolidates five distinct sensing elements within a single housing, thereby reducing the device's physical footprint and simplifying on-site cabling complexity. The housing is typically constructed from corrosion-resistant ASA material, featuring waterproof, dustproof, and shock-resistant properties that enable it to withstand extreme industrial environments ranging from -40°C to 70°C. In terms of explosion protection, the device employs specialized circuit designs and isolation technologies to strictly limit electrical energy within safe thresholds. Common explosion-proof ratings include Ex ib IIB T5 Gb or Ex ia IIC T6 Ga; these ratings ensure that, even in hazardous areas where explosive gases or dusts are present, the device acts neither as an ignition source nor succumbs to external environmental threats. Additionally, some product variants feature concealed ultrasonic probes designed to prevent physical interference with measurements caused by the accumulation of rain or snow.

In the petrochemical sector, this device is deployed within plant processing areas, tank farms, and natural gas storage and transportation stations. It provides real-time monitoring of temperature, humidity, and atmospheric pressure fluctuations around reaction vessels and storage tanks, offering critical data support for preventing material leaks, fires, or explosions triggered by environmental anomalies. For instance, during the loading and unloading of volatile substances—such as solvents—real-time wind direction data can be utilized to determine the dispersion path of any leaked gases, thereby facilitating personnel evacuation or emergency shutdown procedures. In the mining industry—particularly at coal mine shafts and within return air roadways—ventilation monitoring constitutes a core application scenario. Explosion Proof Sensor continuously monitors wind speed and direction data to optimize the operational efficiency of ventilation systems and prevent the accumulation of hazardous gases. Should the monitored wind speed drop below a predetermined safety threshold, the system can trigger a coordinated response, activating ventilation equipment to increase airflow and thereby eliminate explosion risks. Explosion Proof Sensor supports various data transmission methods to accommodate diverse industrial monitoring architectures. The standard configuration typically features an RS485 communication interface utilizing the standard Modbus-RTU protocol. For remote monitoring sites or locations where cabling is difficult, optional wireless transmission modules—such as 4G or LoRa—are available to enable remote, real-time data transmission. The device can also be optionally equipped with an explosion-proof LED display to provide a clear, local visualization of real-time meteorological data; furthermore, it supports an over-limit alarm function, issuing immediate on-site alerts whenever a specific parameter exceeds its preset safety threshold, thereby alerting operators to intervene promptly.
