FT-BQX6 Portable Weather Station: High-Precision 6-Element Rapid-Deployment Meteorological Monitoring System

In many cases, traditional fixed weather stations cannot meet the demands for flexible deployment. Thus, the Portable Weather Station was developed, becoming an important tool in modern meteorological monitoring due to its flexible advantages.

01 Product Overview: High-Precision Automatic Meteorological Observation Device

The FT-BQX6 Portable Weather Station is a highly integrated, low-power consumption, and quickly installable high-precision automatic meteorological observation device.

Supporting multiple transmission methods including wired, Bluetooth, and GPRS, the device requires no debugging, enables rapid deployment, and is suitable for emergency short-term meteorological observation, mobile meteorological monitoring, and other meteorological data acquisition needs.

It is widely used in meteorology, agriculture, forestry, environmental protection, oceanography, airports, ports, scientific expeditions, campus education, and other fields.

02 Monitoring Parameters: Six-Element Integrated Sensor

The FT-BQX6 adopts a six-element integrated sensor, enabling real-time observation of six key meteorological elements: wind speed, wind direction, temperature, humidity, atmospheric pressure, and optical rainfall.

The sensor housing uses imported ABS material, providing effective resistance to harsh environments such as salt spray, with a protection rating of IP65 or higher, ensuring durability in harsh field conditions.

Wind speed measurement range: 0～60m/s, accuracy: ±0.1m/s;Air temperature measurement range: -40-80℃, accuracy: ±0.3℃;Atmospheric pressure measurement range: 300-1100hpa, accuracy: ±0.25%.

03 Technical Advantages: Portability, Efficiency, Durability, and Reliability

The FT-BQX6 design fully considers field usability and reliability. The device features a concealed ultrasonic probe in the top cover, effectively avoiding interference from snow/rain accumulation and natural wind obstruction.

Operating on the principle of emitting continuous frequency-modulated ultrasonic signals and measuring relative phases to detect wind speed and direction, it provides more accurate measurement results.

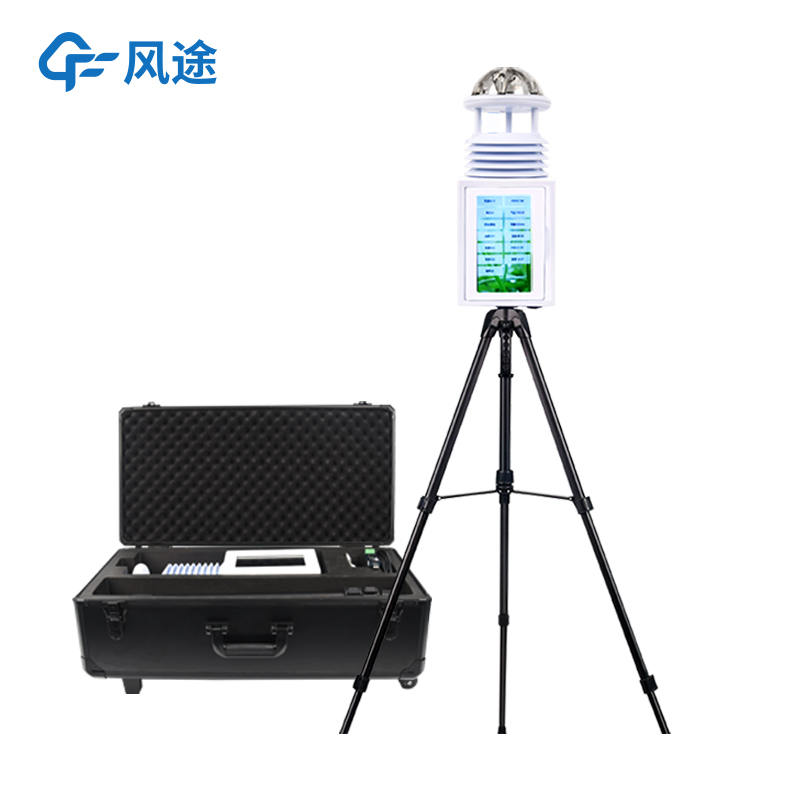

Equipped with a telescopic aluminum alloy bracket and shockproof protective trolley case, the total weight does not exceed 5kg, facilitating easy transportation.

Deployment is convenient, requiring only one person and taking no more than 2 minutes to complete the entire setup process.

04 Application Value: Multi-Field Meteorological Monitoring Solutions

When facing natural disasters, this device can be quickly deployed to disaster areas, providing real-time meteorological information for rescue operations, aiding scientific decision-making, and ensuring the safety of rescue personnel.

For outdoor sports enthusiasts such as mountaineers and hikers, the Portable Weather Station can be carried to predict weather changes and ensure travel safety.

In scientific research, meteorologists, ecologists, and other researchers can use the Portable Weather Station for long-term field monitoring, collecting first-hand data to provide strong support for scientific research.
