Vehicle Meteorological Sensor

1. Product Introduction of Vehicle Meteorological Sensor

Vehicle Meteorological Sensor is adsorbed on the top of the vehicle, and video monitoring technology and sensor monitoring method are adopted.Vehicle Meteorological Sensor is a high-precision automatic meteorological observation equipment that is highly integrated, has low power consumption, can be quickly installed, and is convenient for mobile monitoring.

Widely used in meteorology, agriculture and forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields.

The device uses a five-element integrated sensor that can conduct real-time observations of meteorological elements such as wind speed, wind direction, air temperature, humidity, and atmospheric pressure. The sensor housing is made of imported ABS material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above.

It has three built-in 120° wide-angle cameras and is equipped with the host computer software. Video images and monitoring data can be viewed in real time on the PC.

Comes standard with a 485 to USB cable, which can be connected to a laptop or pad to read data directly. Customers can randomly select a pad according to their own circumstances.

2. Product features of Vehicle Meteorological Sensor

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind.

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed by measuring the relative phase.

3. The bottom of the device is equipped with high-strength magnets (rubber wrapped), which can be adsorbed to the car roof without damage.

4. Shock-absorbing suitcase, easy to carry

5. Built-in electronic compass, automatically finds north

6. Beidou and GPS dual-mode positioning, with a maximum accuracy of 0.1 meters

3. Vehicle Meteorological Sensor technical parameters

1. Wind speed: ultrasonic principle, 0~60m/s (±0.1m/s), can measure the true wind speed

2. Wind direction: ultrasonic principle, 0~360° (±2°)

3. Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃)

4. Air humidity: measurement principle capacitive, 0-100%RH (±3%RH)

5. Atmospheric pressure: measurement principle piezoresistive, 300-1100hpa (±0.25%)

6. Data storage: no less than 500,000 items

7. Cameras: 3, 120° wide angle, resolution 640*480

8. Power consumption: 3.12W

9. Lithium battery: capacity 12000maH, battery life ≥24h

10. Total weight: ≤5kg

11. Installation time: 1 person, no more than 2 minutes to complete the installation

4. Vehicle Meteorological Sensor Dimensions

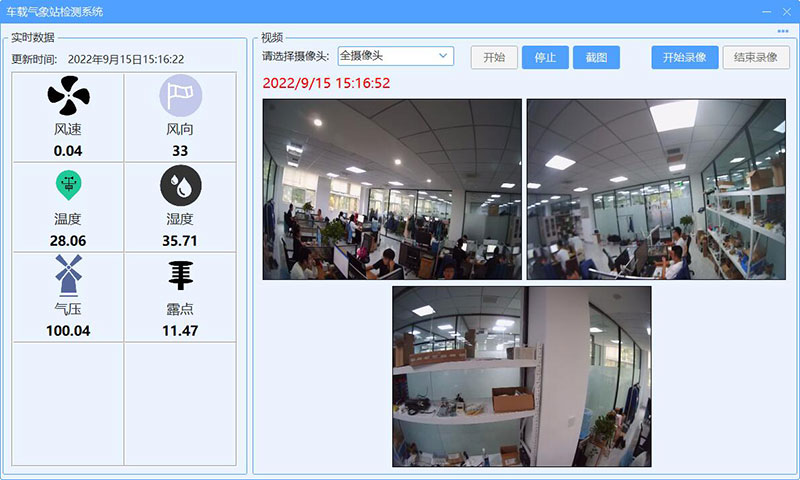

5. Vehicle Meteorological SensorPC interface display

6. Introduction to Vehicle Meteorological Sensor host computer software

1. PC stand-alone version of data receiving, storage, viewing and analysis software

2. Support serial port data reception, processing and display

3. Support json string, modbus485 and other communication methods

4. The storage time can be set by oneself, and the collection time can be set by oneself in the modbus485 collection mode.

5. Support self-service adding, deleting, and modifying protocols, names, icons, etc. of monitoring parameters.

6. Support data post-processing function

7. Support external running of javascript scripts
