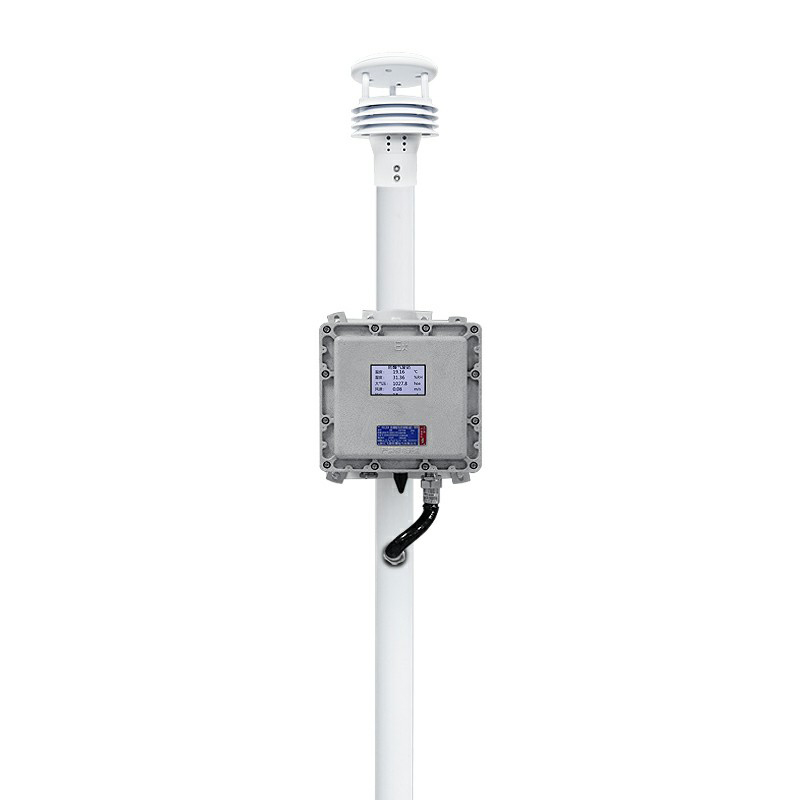

Industrial Weather Station Monitors and Protects High-Risk Flammable and Explosive Environments

Designed specifically for flammable and explosive environments such as chemical tank farms, oil depots, and hazardous chemical warehouses, Industrial Weather Station integrates sensors to monitor five key parameters in real time: temperature, humidity, wind speed, wind direction, and atmospheric pressure. This equipment features multiple protective functions including corrosion resistance, explosion-proof, waterproof, shockproof, and dustproof, enabling stable operation and providing accurate data support in harsh working environments.

Industrial Weather Station is a professional meteorological monitoring instrument specifically designed for high-risk flammable and explosive environments such as mines, chemical industrial parks, oil depots, and gas stations. The core advantage of this type of equipment lies in combining explosion-proof safety performance with accurate meteorological monitoring capabilities. Through intrinsically safe circuit design and explosion-proof enclosures, it effectively eliminates safety hazards such as electrical sparks and high-temperature heating. Industrial Weather Station typically adopts an integrated structural design, combining the data acquisition module, transmission module, and protective enclosure into one unit. Installation and disassembly are relatively simple, and deployment can be completed without professional personnel.

Technical parameters of the explosion-proof weather station:

1) Wind speed: 0～60m/s (±0.1m/s);

2) Wind direction: 0～360° (±2°);

3) Air temperature: -40℃～85℃ (±0.3℃);

4) Air humidity: 0～100%RH (±2%RH);

5) Atmospheric pressure: 300-1100hpa (±0.25%)

The protection design of Industrial Weather Station adopts a five-proof design concept of corrosion resistance, explosion resistance, waterproofing, shock resistance, and dust resistance, which can meet the usage requirements of various harsh operating scenarios such as chemical plants, oil depots, tunnels, and mines. The sensor housing is mostly made of ASA material, which has corrosion resistance and oxidation resistance, and can work stably for a long time in high salt spray and highly corrosive environments. The equipment has passed the national explosion-proof certification and obtained the Ex ia IIC T6 Ga high-level explosion-proof certificate.

In terms of data transmission and storage, Industrial Weather Station supports multiple communication methods such as RS232, RS485, 4G, and GPRS, and can be connected to PLC or DCS systems for data processing and analysis. The device's built-in storage function can store no fewer than 500,000 data entries, and supports a mechanism for data recovery after network outages to ensure no data loss. For key protected areas such as chemical tank farms and oil depots, Industrial Weather Station can monitor changes in meteorological conditions in real time, helping managers predict potential safety risks caused by meteorological factors such as strong winds and high temperatures, providing reliable data support for safe production and emergency response in high-risk locations.
