An automatic water level monitoring and alarm system is recommended

The water level automatic monitoring and alarm system, through the real-time measurement and monitoring of water level, realizes the automatic warning signal and warning when the water situation is abnormal. The system has the advantages of simple operation, high degree of automation and strong anti-interference ability, which can help improve the flood warning level.

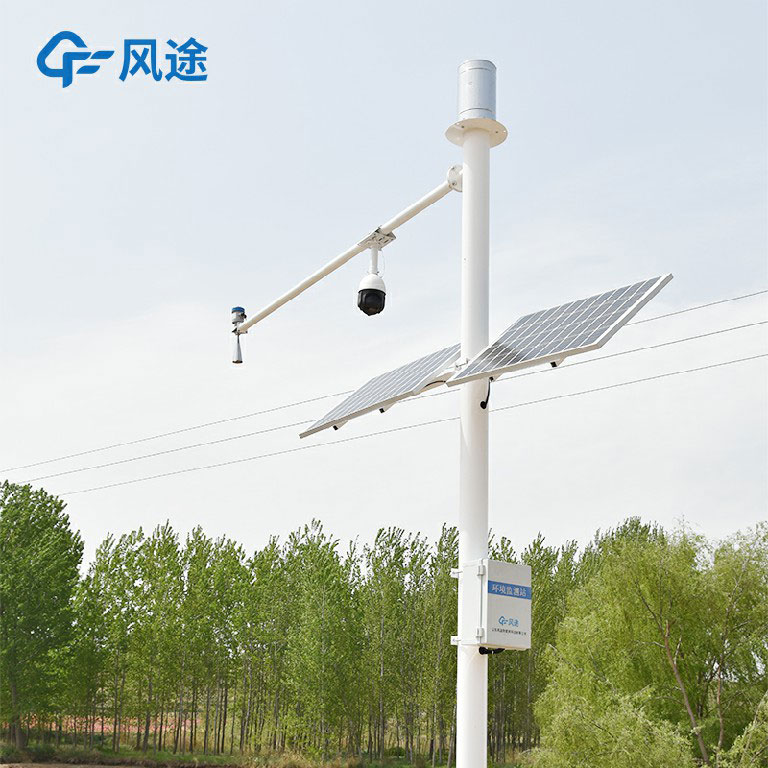

Fengtu Technology is a manufacturer of automatic water level monitoring and alarm system. Its FT-SW1 water level monitoring system is composed of radar water level sensor, pole bracket, monitoring platform, power supply system, communication system and so on. Among them, the radar sensor uses K-band plane radar technology to measure the river level in a non-contact way, and because of this, it is not affected by factors such as foam, temperature, sediment, and floating objects, and can obtain more accurate data. Water level measurement range is 0-30 meters, accuracy ±1cm, resolution 1mm, data refresh time can be adjusted, 1-5000min can be adjusted.

FT-SW1 water level automatic monitoring alarm system power supply, choose solar panel + battery combination, solar power is 10W/30W choice, battery parameters are DC3.7V 10Ah. Its vertical pole support is 4 meters high, the transverse arm is 3 meters long, and it needs to be used at -20 ° C ~ 80 ° C (in a non-freezing state).

FT-SW1 water level automatic monitoring alarm system field protection level is IP68, the default RS485/MODBUS protocol signal output, supporting monitoring platform can be directly logged in through the web page, no need to install software, support multi-account, multi-device login, can display real-time data transmitted from the scene. And on this platform, users can set up SMS alarm function. When the water level is detected to exceed the threshold, an alarm message is automatically sent to the specified mobile phone number. Through the platform, users can export data tables and run javascript scripts externally.
