Five elements micro meteorological instrument

1. Five elements micro meteorological instrument product introduction

Five elements micro meteorological instrument can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, and air pressure.Shandong Fengtu Internet of Things Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteorological instruments, has been committed to the promotion and application of micro meteorological instruments and meteorological environment solutions. With a complete production chain, a strong technical team and a comprehensive marketing team, the meteorological products we develop and produce such as ultrasonic wind speed and direction meters, five-element micrometeorometers, six-element micrometeorometers and small automatic weather stations have been widely used in In the fields of meteorological monitoring, urban environment monitoring, wind power generation, navigation ships, aviation airports, bridges and tunnels, etc., we have customers all over the country and have achieved good social and economic benefits.

Compared with traditional miniature weather instruments, our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

The FT-WQX5S five-element micro-meteorometer innovatively combines wind speed, wind direction, temperature, humidity, and atmospheric pressure through a highly integrated structure. It can realize 24-hour continuous online monitoring of outdoor meteorological parameters and integrate the five elements through a digital communication interface. The parameters are output to the user at once.

2. Product features of Five elements micro meteorological instrument

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind (utility model patent, patent number ZL 2020 2 3215713.X) ☆

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5) ☆

3. Integrated five elements of wind speed, wind direction, temperature, humidity and atmospheric pressure (utility model patent, patent number ZL 2020 2 3215649.5)☆

4. Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5. Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

6. High integration, no moving parts, zero wear and tear

7. Maintenance-free, no on-site calibration required

8. Made of stainless steel, high strength, anti-oxidation and anti-corrosion

9. The standard output signal of product design is RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces support real-time reading of data☆

10. Optional external wireless transmission module, minimum transmission interval is 1 minute

11. Optional built-in heating module: heating current 1A (DC12V), heating power consumption 12-15W

12. The one-piece design has low wear, long service life and fast response speed.

3. Technical parameters of Five elements micro meteorological instrument

1. Wind speed: measurement principle ultrasonic, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, patent number ZL 2021 1 0237536.5)

2. Wind direction: Measurement principle ultrasonic, 0~360° (±2°); Resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3. Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4. Air humidity: measurement principle capacitive, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5. Atmospheric pressure: measurement principle piezoresistive, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6. Power: 0.72W

7. The production enterprise has ISO quality management system, environmental management system and occupational health management system certification☆

8. The production enterprise has a computer software registration certificate☆

9. The production enterprise is a 3A credit enterprise☆

4. Five elements micro meteorological instrument product size chart

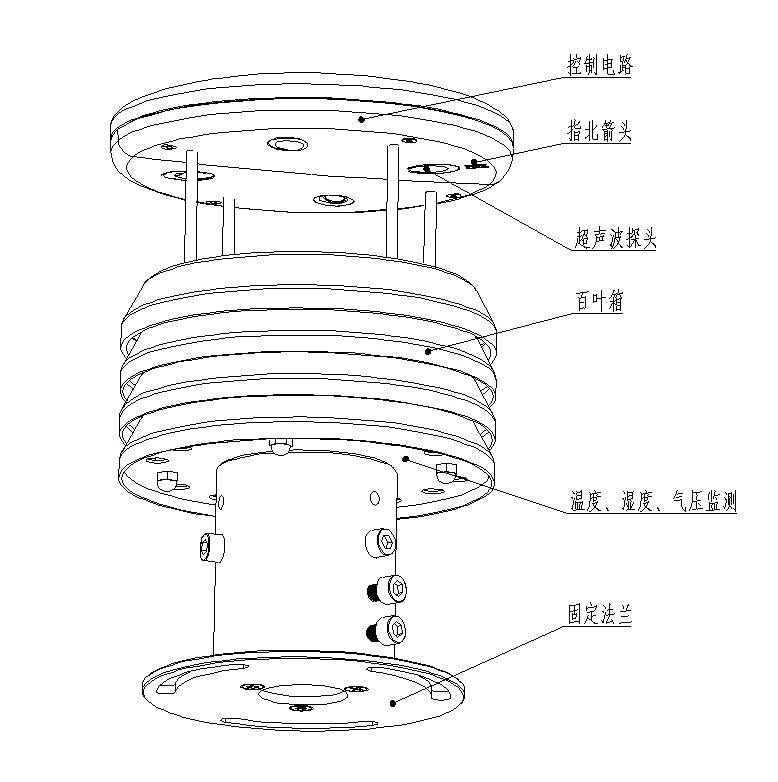

5. Five elements micro meteorological instrument product structure chart

6. Five elements micro meteorological instrument product wiring definition
