Integrated Weather Observation System

1. Integrated Weather Observation System Product Introduction

Integrated Weather Observation System can simultaneously collect wind speed, wind direction, air temperature and humidity, atmospheric pressure, light, rainfall and other elements.The Integrated Weather Observation System is a high-precision automatic weather observation equipment that is highly integrated, has low power consumption, can be quickly installed, and is easy to use for field monitoring.

The equipment supports wireless transmission, requires no debugging, and can be quickly deployed. It is suitable for the acquisition of meteorological data such as short-term emergency meteorological observations and mobile meteorological monitoring. Widely used in meteorology, agriculture and forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields

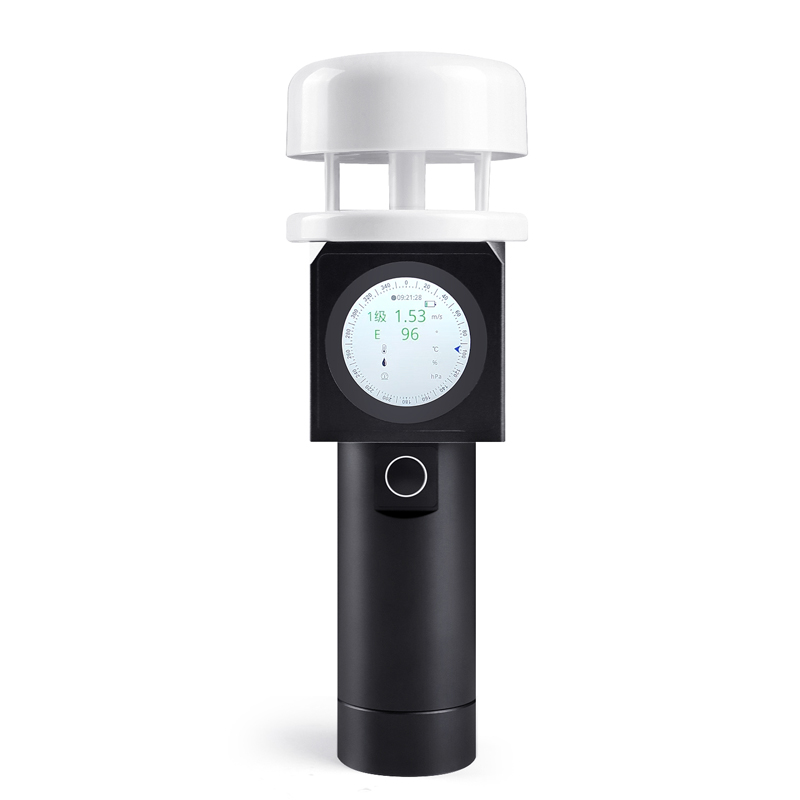

The device uses a seven-element integrated sensor that can conduct real-time observations of meteorological elements such as wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, optical rainfall, etc. The sensor shell is made of imported ABS material, which is more effective against environments such as salt spray and provides protection. The grade reaches IP65 or above.

2. Product features of Integrated Weather Observation System

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind (utility model patent, patent number ZL 2020 2 3215713.X) ☆

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5) ☆

3. Seven-element integrated sensor of wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, and optical rainfall (utility model patent, patent number ZL 2020 2 3215649.5)☆

4. Powered by lithium battery, with power display function

5. Shock-absorbing and protective trolley case, easy to carry

6. Aluminum alloy bracket, retractable

7. Android 7-inch touch screen

3. Technical parameters of Integrated Weather Observation System

1. Wind speed: 0~60m/s (±0.1m/s); (Beijing Meteorological Calibration Certificate)

2. Wind direction: 0~360° (±2°); (Beijing Meteorological Calibration Certificate)

3. Air temperature: -40-60℃ (±0.3℃); (Calibration certificate of Beijing Meteorological Bureau)

4. Air humidity: 0-100%RH (±3%RH); (Beijing Meteorological Bureau calibration certificate)

5. Atmospheric pressure: 300-1100hpa (±0.25%); (Beijing Meteorological Bureau calibration certificate)

6. Light: 0-157286LUX (＜±3%)

7. Optical rainfall: 0-4mm/min (≤±4%)

8. Data storage: no less than 500,000 items;

9. Power consumption: 1.75W

10. Lithium battery: removable lithium battery pack, capacity 12000maH, battery life ≥32h

11.Total weight: ≤5kg;

12. Installation time: 1 person, no more than 2 minutes to complete the installation;

13. The production enterprise has ISO quality management system, environmental management system and occupational health management system certification.

14. The production enterprise has a computer software registration certificate

15. The production enterprise is a 3A credit enterprise

4. Integrated Weather Observation System outer box dimensions diagram

5. Integrated Weather Observation System product details

6. Integrated Weather Observation System Product Dimensions

7. Introduction to Integrated Weather Observation System host computer software

1. PC stand-alone version of data receiving, storage, viewing and analysis software

2. Support serial port data reception, processing and display

3. Support json string, modbus485 and other communication methods

4. The storage time can be set by oneself, and the collection time can be set by oneself in the modbus485 collection mode.

5. Support self-service adding, deleting, and modifying protocols, names, icons, etc. of monitoring parameters

6.Support data post-processing function

7. Supports external running of javascript scripts

8. Introduction to Integrated Weather Observation System Android APP

1. Android stand-alone version of data receiving, storage, viewing and analysis software

2.Support Bluetooth data reception

3. After the mobile phone is asleep, the software receives and processes it in the background

4. JSON data automatically adds devices, and modbus devices support scanning QR codes to add devices.

5. Supports historical data viewing, analysis, and table export, and supports curve display and single data point viewing.

6.Support data post-processing function

7. Supports external running of javascript scripts

9. Introduction to the Integrated Weather Observation System cloud platform

1. CS architecture software platform supports direct observation on mobile phones and PC browsers without the need to install additional software.

2. Support multiple accounts and multiple devices to log in

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable and reliable, easy to expand and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and view device information.

7. Support data curve analysis

8. Support data export table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
