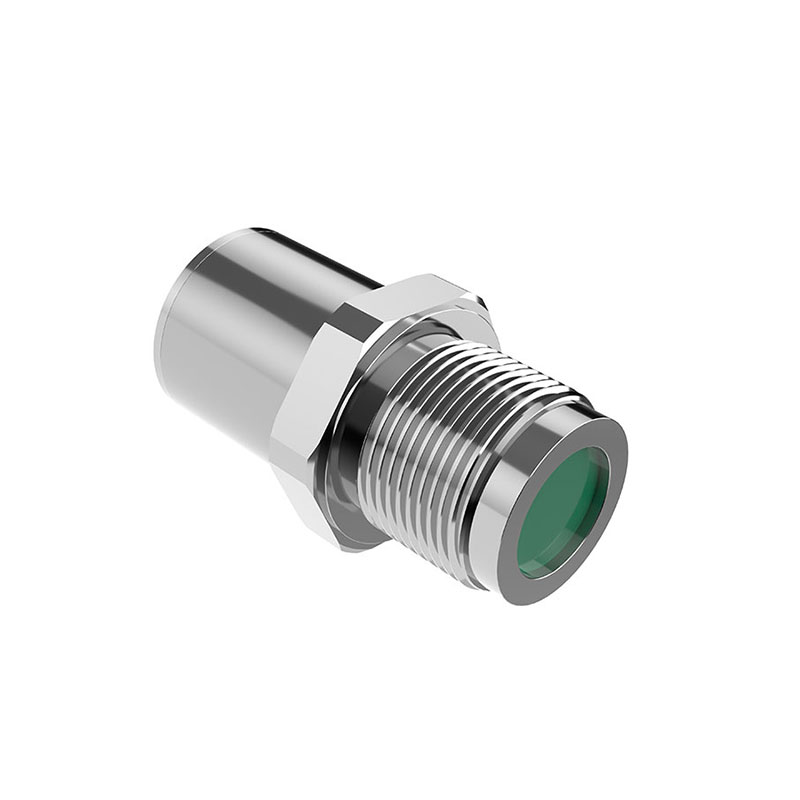

Metallic Particle Sensor

Model：ME-5

Brand：fengtu

Metallic Particle Sensor monitors the oil condition in real time. The sensor can detect the size, mass, properties, and accumulation trend of ferromagnetic metal particles in the lubricating oil....

Get a Free Quote

1、Metallic Particle Sensor Product Introduction

Metallic Particle Sensor monitors the oil condition in real time. The sensor can detect the size, mass, properties, and accumulation trend of ferromagnetic metal particles in the lubricating oil.Metal shavings are generated during the operation of bearings and gears in transmission machinery. These shavings are carried into the return oil line by the lubricating oil. An online metal shavings monitoring sensor is installed in the return oil line to monitor the size, mass, properties, and accumulation trend of the metal shavings. The monitored data is recorded in real time, and through data demodulation, the health status of the transmission equipment is determined. This provides reliable early warning and lifespan prediction for mechanical equipment.

The Metallic Particle Sensor sensor mainly consists of a sensor, a signal conditioning module, and connecting cables. It involves knowledge from multiple disciplines including mechanics, electronics, signal processing, and computer science, and is a typical product of the integration of multiple high technologies. Installed in the lubrication system's oil circuit, the Metallic Particle Sensor monitors the accumulation of parameters such as the quantity and size of metal shavings in the power transmission system in real time to analyze the health status of the power transmission system, enabling proactive maintenance measures to ensure reliable system operation.

The Metallic Particle Sensor sensor uses the principle of electromagnetic induction to detect the quantity of metal particles in the lubrication system, serving as a basis for determining the degree of damage to bearings or gearboxes. The sensor must be installed before the filter, at the lowest point of the return line.

2、Metallic Particle Sensor Features

Online, real-time detection of metal particles

Full-flow design

100% detection rate of ferromagnetic metal particle concentration

Easy to install

Intuitive and clear display of monitoring data

Robust structural design

No moving parts

Long transmission distance, up to 1000 meters

Signal line withstands 5KV high isolation voltage

3、Metallic Particle Sensor Application areas

Lubricating oil is the "blood" of critical equipment. Lubricating oil failure directly leads to abnormal wear of non-critical mechanical components, a major cause of equipment malfunctions and serious accidents.

Metallic Particle Sensor can monitor the wear level of the oil in the hydraulic system 24/7, providing real-time feedback on the oil's condition. This helps users avoid or mitigate equipment failures caused by lubricating oil failure.

Metallic Particle Sensor can be widely used in industries such as power, mining, cement, shipbuilding, military, industrial manufacturing, papermaking, petrochemicals, transportation, metallurgy, aviation, oil fields, and ports. Applications include: wind turbine gearboxes, aircraft/helicopter gearboxes, hydraulic transmission systems, machining centers, steam turbines, gearboxes, and gasoline/diesel engines.

4、Metallic Particle Sensor Technical parameters

Particle Concentration

Detection Range: 0~100%

Resolution: 0.01%

Temperature

Detection Range: -40~120°C

Detection Accuracy (Typical Value at 23°C):

±0.5°C or ±3% (whichever is greater)

Resolution: 0.01°C

Electrical Parameters

Communication Protocol: MODBUS RTU

Cable Interface: M12*15 cores or M8*16 cores
